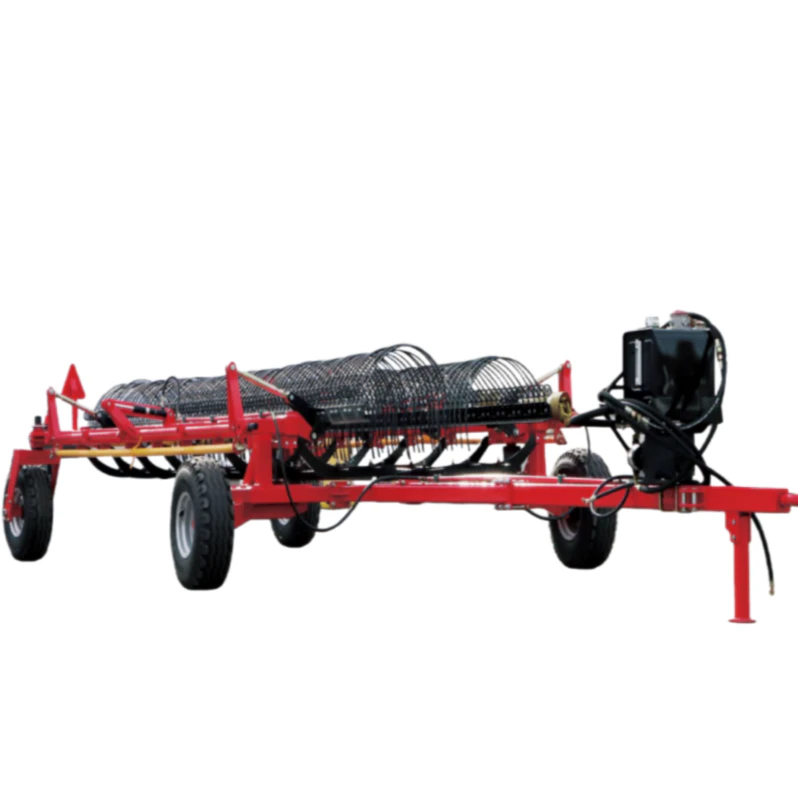

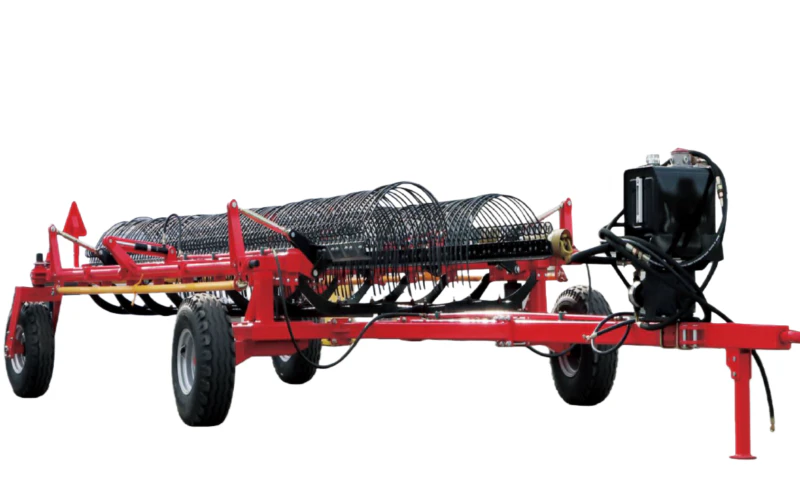

The 9LH-12 Horizontal Hay Rake is a high-efficiency hay harvesting device designed specifically for large natural pastures. It features a tractor-driven lateral structure and is used with 25-44kW wheeled tractors via a tow-and-mount system. It can quickly and evenly rake cut hay into neat hay ridges, with the ridges perpendicular to the machine’s direction of travel, facilitating subsequent baling or transport operations.
9LH-12 Horizontal Hay Rake Technical Specifications
| Parameter | 9LH-12 Horizontal Hay Rake Specifications |
|---|---|
| Model Designation | 9LH-12 Horizontal Hay Rake (Towed Side Delivery Type) |
| Raking Type | Horizontal / Side Delivery Raking System |
| Tractor Power Requirement | 25-44kW (35-60HP) – Optimal: 40-50HP |
| Working Width | 12 meters (39.4 feet) – Industry Leading |
| Horizontal Raking Speed | 5-10 km/h (3.1-6.2 mph) – Adjustable |
| Hourly Productivity | 6-12 hectares/hour (14.8-29.7 acres/hour) |
| Tine Configuration | 168 heavy-duty spring steel tines |
| Hay Loss Rate | ≤3% (Industry Benchmark) |
| Operating Personnel | 1 operator (tractor driver) |
| Machine Weight | 1510 kg (3329 lbs) |
| Working Dimensions (L×W×H) | 5500×12000×1350mm (12m horizontal width) |
| Transport Dimensions (L×W×H) | 9400×3400×1750mm (folded for transport) |
9LH-12 Horizontal Hay Rake Core Highlights
Efficient operating capacity: 12-meter wide design, operating area of 6-12 hectares per hour
Intelligent operation experience: One person can complete all operations, and the hydraulic control system is simple and reliable
Excellent work quality: the missed connection rate is ≤3%, the grass strips are fluffy and even, and the grassland ecology is protected.
Strong adaptability: suitable for various terrains and grassland types, especially suitable for large-area operations
Economical and practical: low maintenance cost, long service life, high return on investment
Why Choose 9LH-12 Horizontal Hay Rake?
Professional advantages:
- Mature and reliable technology: using proven horizontal raking technology, the operation effect is stable
- Excellent working quality: the grass strips have high fluffiness, which is conducive to rapid drying of forage.
- Protect grassland resources: gentle work will not damage grass roots and ensure sustainable development of grassland
Economic advantage
- High production efficiency: wide-width design greatly improves operating efficiency
- Low operating cost: simple structure, easy maintenance, low use cost
- Strong adaptability: one piece of equipment meets a variety of operating needs
Operational advantages
- Intelligent control: the hydraulic system enables one-button operation
- Humanized design: easy to operate and reduce labor intensity
- Safe and reliable: multiple safety protection devices ensure safe operation
🌾Application Scenarios for 9LH-12 Horizontal Hay Rake
Natural Grasslands & Pastures
The 9LH-12 horizontal hay rake excels in large natural grassland operations across:
- Mongolian Steppes & Inner Mongolian grasslands
- North American Prairies (USA & Canada)
- Australian Outback pastures
- New Zealand sheep & dairy pastures
- Argentine Pampas grasslands
Best for: Mixed grass species, extensive grazing systems
Alfalfa & Legume Fields
Gentle horizontal raking action protects delicate legume leaves:
- Alfalfa (Lucerne) hay production
- Clover stands for premium hay
- Mixed legume-grass pastures
- Organic hay operations
Key benefit: Minimal leaf loss (critical for high-protein hay)
Large-Scale Hay Farms
Commercial operations benefit from 12m efficiency:
- 100+ hectare hay enterprises
- Custom hay harvesting services
- Government agricultural projects
- Export hay production facilities
Economic advantage: Fast field completion reduces weather risks
Specific Regional Applications
Regional adaptability of the 9LH-12 horizontal rake:
- Arid regions: Gentle raking preserves soil moisture
- Hilly terrain: Stable performance on moderate slopes
- Wet climates: Fluffy windrows enhance drying
- Cold regions: Durable construction withstands harsh conditions
🚜Compatible Tractor Models for 9LH-12 Horizontal Hay Rake
Recommended Tractor Power: 40-50HP (Optimal Range)
John Deere Series
- John Deere 5E Series (5050E, 5075E)
- John Deere 6D Series (6115D, 6130D)
- 5075M (75HP) – Excellent power reserve
Hydraulic requirement: Standard remote hydraulics
New Holland Series
- New Holland Workmaster 55/65/75
- New Holland T4.75/T4.90
- Boomer 45/55 Series (compact utility)
Note: Ensure adequate hydraulic flow rate
Case IH Series
- Case IH Farmall 55A/75A
- Case IH Maxxum 115-140 (for heavy conditions)
- Case IH JX Series tractors
Weight advantage: Good tractor weight improves traction
Kubota Series
- Kubota M5-091/111
- Kubota M4 Series (M4D-091)
- Kubota L4702/L5702 (minimum recommended)
Advantage: Excellent hydraulic systems
Additional Compatibility Notes
Minimum Requirements: Category 1 or 2 three-point hitch, hydraulic remote valve, 40+ PTO HP
Optimal Setup: 50-60HP tractor with front weights for balance, dual remote hydraulics
Regional Brands: Also compatible with Massey Ferguson, Valtra, Deutz-Fahr, and reliable Chinese brands (Dongfeng, YTO)
🔧Comprehensive After-Sales Service for 9LH-12 Horizontal Hay Rake
Warranty Coverage
- ✓
24-month comprehensive warranty on all major components - ✓
12-month warranty on wearing parts (tines, bearings) - ✓
Extended warranty options available up to 5 years - ✓
Global warranty service at authorized dealerships
Technical Support
- 📞
24/7 technical hotline for operational emergencies - 👨🔧
On-site service teams in major agricultural regions - 🎥
Remote video diagnostics for quick troubleshooting - 📚
Comprehensive online manuals and video tutorials
Parts & Supply Chain
- ⏱️
48-hour parts dispatch for critical components - 🌍
Global parts network with 6 regional warehouses - 📦
Original manufacturer parts guaranteed for 10+ years - 🔧
Maintenance kits available for seasonal service
Training & Education
- 🎓
Free operator training with each purchase - 📹
Online training portal with multilingual content - 🏫
Annual service technician workshops - 🤝
Dealer certification programs for local support
Service Coverage Regions
Our after-sales network covers all major agricultural regions worldwide:
European Union
Australia/NZ
South America
Central Asia
Africa (Selected Regions)
